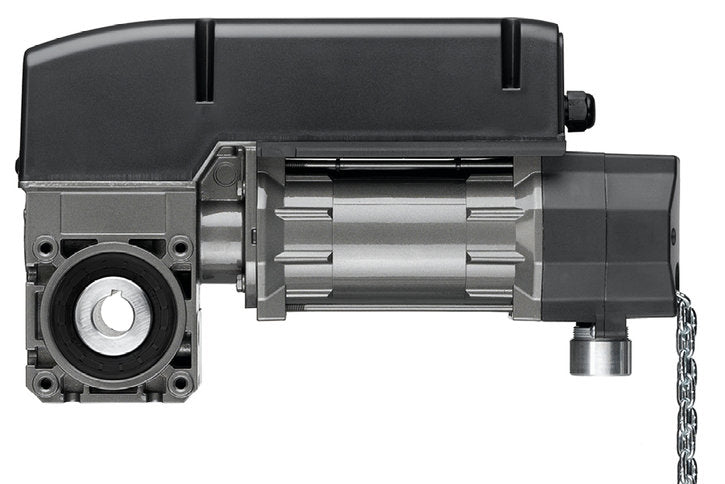

Motor STAC 1-5-24 KE MFZ-Marantec

Motor MFZ  cu encoder destinat usilor sectionale echilibrate cu arc. Motorul suporta safety edge, fotocelule, reciver telecomanda . Se recomanda pentru usi de 20 mp.

Coponente :

• Power supply 3~ 400V 50Hz
  Limit switch AWG_V3
  Limit switch Rotations 20,0
  Hollow shaft diameter 25,4 mm
  Protection IP54
  Temperature range from -20° to +60°
  ----------------------- --------------------------

• Drive STA 1-5-24 KE
  Nominal voltage 400V 3~ Y

• Control CS320
  Documentation Language set A English
  with or without cable with cable set
  ----------------------- ---------------------------
  Control Housing Standard housing
• Button array CS3PB

• Display LCD Display
  Limit switch Absolute encoder
  Power plug 5 poles mains plug
  power supply cable 1000 mm
  Documentation Language set B Rumenian
  Software STD
  Control decal (foil) neutral
  ----------------------- -----------------------

• Length of cable 7,0 m
  Height of flange end switch Design size 05 & 1 (Std)
  ----------------------- -------------------------

• Mechanical accessories 1 Torque bracket
  U-,S & L forms L-Form
  Drehmmomentstütze STA1
  Mechanical accessories 1 Accessory bag
  Accessory Bag STA1 standard
  Mechanical accessories 1 Hand chain
  Material type Steel

• Length of the chain 5,0 m
